Four Lamont magnetic level gauges standing side by side in front of a refinery in evening light: two Magnamont, a Polysight and a Fortimag
Magnamont magnetic level gauge indicator with a black scale starting at 0 ft: red flags below the liquid level, white flags above

Magnetic level gauges, engineered to order in Canada. Level gauges, bridles and instrumentation

Magnamont™, Fortimag™ and Polysight™, each built for the vessel, the fluid and the piping code. Local level indication with no power required.

Replies within 1 to 3 business days.

Magnamont™, Polysight™ and Fortimag™. Background: licensed stock image.

Products

Level measurement equipment

Lamont Controls is a Canadian manufacturer of magnetic level gauges for process vessels and storage tanks. The company builds Magnamont™, Fortimag™ and Polysight™ gauges, and supplies level bridles and external chambers, Plumbline™ float-and-board tank gauges, LevelSync™ transmitters, SurePoint™ switches, and retrofits and spare parts for installed gauges.

Each gauge and bridle is built to order. A quotation is prepared from the fluid and specific gravity, the operating and design pressure and temperature, the centre-to-centre distance and the process connections.

Level bridles and chambers

The gauge, transmitter and switches share one liquid column and one pair of vessel nozzles. SS316, built to ASME B31.3 or B31.1.

Plumbline™ tank gauges

Float-and-board (target) gauges for fixed-roof atmospheric storage tanks. No power required; every penetration is on the roof.

Retrofits and spare parts

Replacement gauges are built to the existing centre-to-centre distance and process connections. Spare parts for installed gauges.

Pressure and temperature ratings depend on materials, connections and configuration, and are confirmed at quotation.

Magnetic level gauges

Magnamont™, Fortimag™ and Polysight™ compared

Full comparison and selection guide →

All three gauges operate on the same principle. They differ in the chamber: its material, its construction, and its pressure and temperature ratings. The table lists the chamber, ratings and typical service of each gauge.

Magnamont, Fortimag and Polysight magnetic level gauges: key specifications
Magnamont™SS316 magnetic level gauge Fortimag™Extreme-service magnetic level gauge Polysight™Thermoplastic magnetic level gauge
Chamber316 stainless steel, welded316 stainless steel, double-flanged with weld-neck flangesCPVC or PVDF
Pressure3,400 psigfull vacuum to 234 bar5,000 psigfull vacuum to 345 bar150 psigfull vacuum to 10 bar
Temperature−40…+842 °F−40…+450 °C−40…+842 °F−40…+450 °C−4…+248 °F−20…+120 °C
Minimum SG0.340.340.59
Typical serviceStorage tanks, process vessels, boilers, drums and utility skidsHighest-pressure and hazardous service; flashing service with VaporGuard™Acids, caustics and salts

Standard lengths to 18.5 ft (222 in, 5,640 mm) centre-to-centre on all three gauges; longer lengths on request. Magnamont™ and Fortimag™: lower temperatures on application review. Ratings are confirmed at quotation.

Level bridles and chambers

Level bridles and level packages

A level bridle gives every level instrument on a vessel one shared liquid column and one pair of vessel nozzles. The gauge, transmitter and switches mount on the bridle, not on separate vessel penetrations. Isolation valves allow each instrument to be serviced without draining the vessel.

  • Fewer vessel nozzles. Two vessel connections serve every instrument.
  • Maintenance without shutdown. With the isolation valves closed and the bridle drained, an instrument can be serviced while the vessel remains in operation.
  • Consistent readings. Every instrument measures the same liquid column, so the gauge, transmitter and switches agree.
  • Level package. In 316 stainless steel, the bridle can serve as the gauge chamber. One standpipe carries a Magnamont™ gauge, a LevelSync™ transmitter and SurePoint™ switches, with no additional vessel nozzles.
  • Construction and documentation. 316 stainless steel, built to ASME B31.3 or B31.1. Pressure tested before shipment. The approval drawing is issued after the purchase order.
Render of an instrument bridle: a 3 in stainless standpipe with a guided-wave radar on the top flange, a Magnamont magnetic level gauge on its own valved connections with SPDT clamp-on switches, a valved spare connection with a blind flange, ¾" valved vent and drain, and a gate valve bolted to each vessel nozzle.
Render · instrument bridle
Render of the same instrument bridle from the vessel side: a gate valve on each of the two vessel nozzles, with the radar, the spare connection and the Magnamont gauge behind.
Render · vessel side
Render of a Magnamont™ level package: the gauge chamber serves as the bridle, with a LevelSync™ transmitter at the top, SPDT clamp-on switches, an isolation valve on each vessel nozzle, and a valved vent and drain.
Render · level package: bridle as a Magnamont™ chamber

Engineering

Design, construction, testing and documentation

Each gauge is engineered for the vessel, the fluid and the piping code of its application. The stages below run from specification through to examination, testing and documentation.

  • Engineered to order. The vessel sets the chamber length. The float is weighted for the specific gravity, temperature and pressure of the fluid. The scale and the process connections follow the specification.
  • Model code. Every gauge is defined by an 18-position model code. Each position specifies a chamber, float, indicator or construction option.
  • Approval drawing. An approval drawing is issued after the purchase order. Fabrication starts once the design is confirmed on the drawing.
  • Construction codes. Magnamont™ and Fortimag™ chambers and level bridles are built to ASME B31.1 Power Piping or ASME B31.3 Process Piping, or industrial grade. Polysight™ chambers are solvent- and fusion-bonded thermoplastic.
  • Examination, testing and documentation. Pressure tested before shipment; hydrostatic test at not less than 1.5 × design pressure where specified. Non-destructive examination, including radiographic (X-ray) and dye-penetrant examination, is performed where required by the construction code or specified by the purchaser. Materials are traceable throughout manufacturing. MTRs and hydrostatic test reports available.

About Lamont Controls

Forged weld-neck flange on a side nozzle of a Fortimag chamber, the rim stamped F316/316L 900/1500, with the nozzle-to-flange weld
Forged weld-neck flange on a Fortimag side nozzle, stamped F316/316L 900/1500.

Production photographs

Red indicator flags below the level and white above, beside the black etched scale
Indicator flagsRed flags beside the black etched scale
Open Fortimag process flange with a machined gasket face and the forge stamp on the rim
Process flangeFortimag, forged F316/316L
Fillet weld at the joint between a side nozzle and a gauge chamber
WeldingNozzle-to-chamber fillet weld

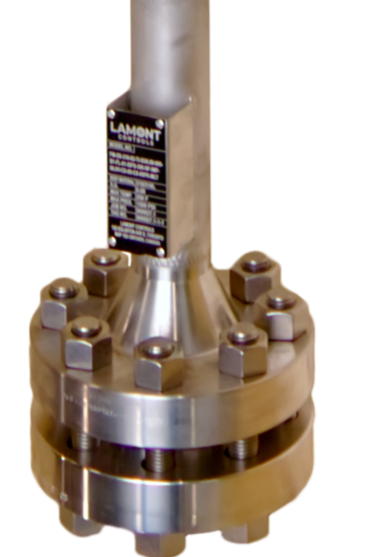

Lamont Controls nameplate with the full model code, above a bolted weld-neck flange
NameplateFull model code on the chamber

Customers

Supplied to industry, utilities and government

  • NASA
  • SLB
  • DuPont
  • PepsiCo
  • Transocean
  • Vistra
  • Ontario Power Generation
  • Formosa Plastics
  • Buckeye Partners
  • Nashville International Airport (BNA)
  • Zachry
  • Motion Industries

Names and logos are trademarks of their respective owners and are shown for identification only; no endorsement is implied.

Applications

Industries served

Lamont magnetic level gauges are engineered to order for process and utility service in power generation, oil and gas, chemical, marine and other industries. Each industry lists the gauge lines suited to its service.

Industry photographs are licensed stock images.

Articles

Technical resources

View all resources →

Lamont Controls publishes engineering references for the selection and specification of magnetic level gauges.

How a magnetic level gauge works

The operating principle, animated to scale: the chamber shares the vessel’s level, and the float magnet turns the indicator flags with no power.

Read the article

How to specify a magnetic level gauge

The process data a quotation needs, the choice of gauge line, and the 18-position Lamont model code, explained position by position.

Read the article

Magnetic level gauges and other level technologies compared

Magnetic level gauges compared with sight glasses and with differential pressure, radar, ultrasonic and capacitance measurement.

Read the article

Quotation

Request a quotation

Send the process conditions, or attach a datasheet or drawing. Lamont Controls Engineering recommends the line, prices the gauge and confirms the lead time.

Replacement gauges. Include a photo of the existing nameplate.

For several gauges, list each tag in one request.

1-833-7LAMONT info@lamontcontrols.com

What to include

  • Fluid and specific gravity
  • Operating and design pressure and temperature
  • Centre-to-centre distance
  • Process connection size and rating
  • Quantity and tag numbers

Ratings and specifications per Lamont Controls technical specification sheets MM-TS-010, FM-TS-010 and PS-TS-010 (November 2026). Specifications subject to change without notice.
